High-End Ethernet Switch with OCXO Clock


2025 New Arrived! AS8 PRO


CNC Aluminum Block Chassis [Silver/Black]

AC Incoming: High Quality IEC with Fuse & ON/OFF Switch

AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter

AC Transformer: High Quality Noratel Multicomp PRO Toroidal Transformer

High Speed Rectifier

High Endurance Reservoir Caps

Phillips 1% Precision Resistors

Multistage DC/DC uV-class linear power supply with noise close to 0 (lab measurable noise in the range of uV)

Integrated Aluminium Heat-sink Chassis

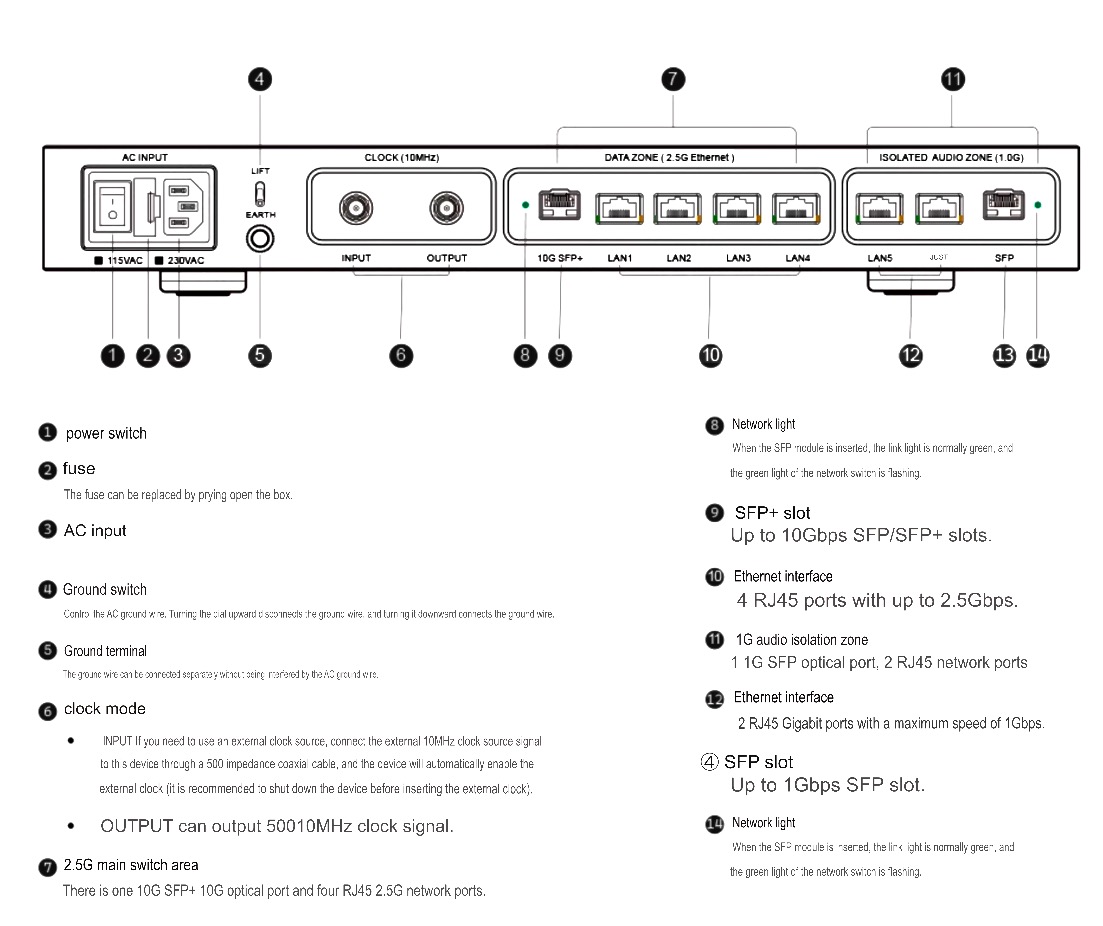

Connectivity:

1 x 10MHz Sine wave / Square wave, 50Ω BNC Master Clock In

1 x 10MHz Square wave, 50ΩBNC Master Clock Out

1 x Grounding post


Data Zone:

4 x 2.5G Ports RJ-45

1 x 10G SFP+ Port



Isolated Audio Zone:

2 x Gigabit Ports RJ-45

1 x SFP Port


OCXO

Phase Noise -110dBc/1Hz (Typical) <+/-5 ppb, <+/-0.05ppm.

Clock Ethernet Data Stream by High-quality SC-CUT Oven Controlled Crystal Oscillator with ultra-low noise PLL circuitry

Noticeable improvement in Clocking precision and lower jitters

Master Clock 10MHz Input via BNC connectors



Master Clock In

Input: Sine wave / Square wave, 50Ω

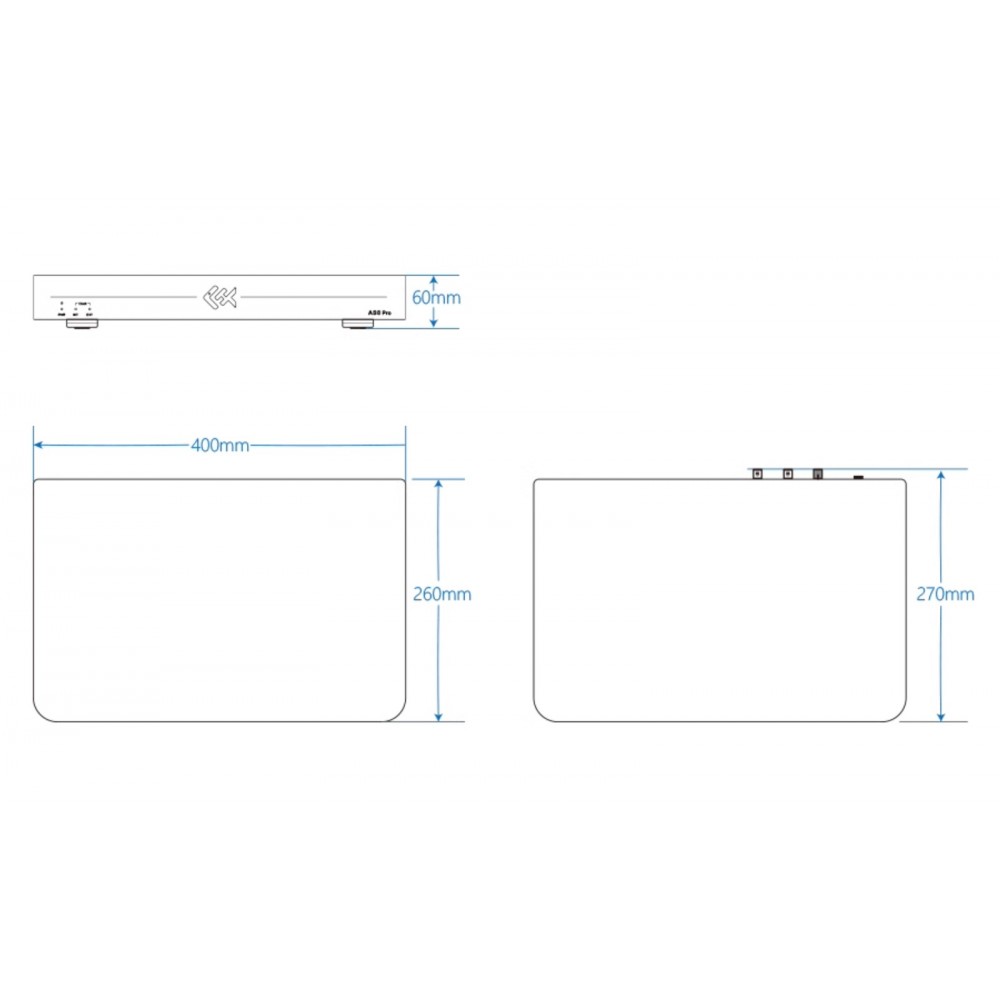

Dimension: 400W x 60H x 260D (mm)

Weight: 5.5kg


1 Year Warranty.


Order need 10-15 days.



Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

LHY AS8 PRO

  • Brand: LHY
  • Product Code: AS8 PRO
  • Availability: In Stock
  • USD$2,000.00


Available Options
